35RDC复合材料损伤检查仪是一款简单的Go/No-Go（快速确定产品合格/不合格）超声测厚仪，设计用于探测飞机复合材料结构受到冲击损伤而产生的近表面缺陷。
35RDC复合材料损伤检查仪是一款简单的Go/No-Go（快速确定产品合格/不合格）超声测厚仪，设计用于探测飞机复合材料结构受到冲击损伤而产生的近表面缺陷。

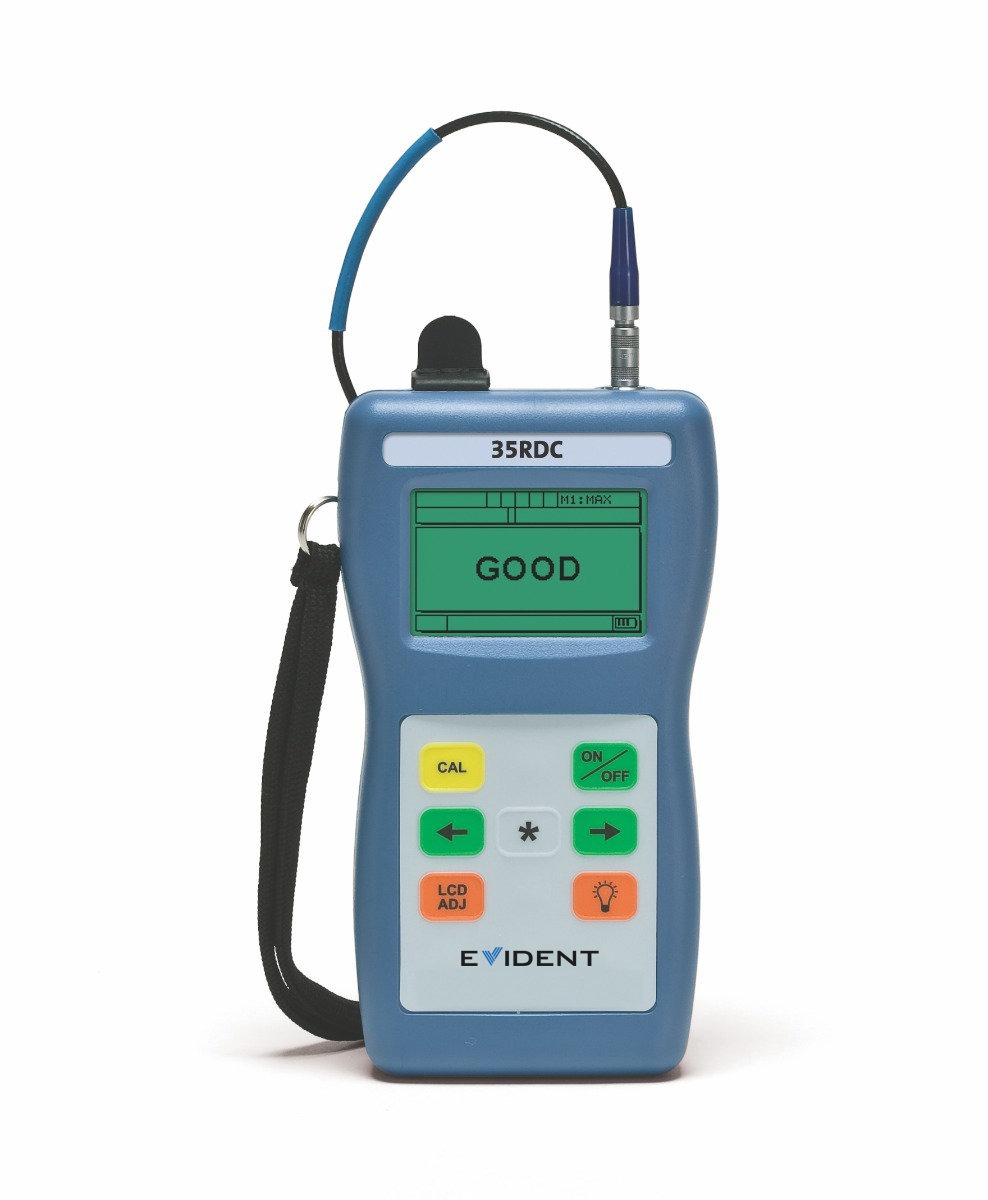

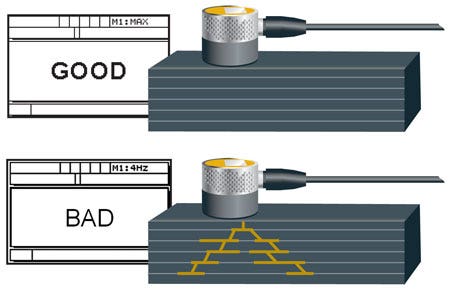

The handheld 35RDC is a simple Go/No-Go ultrasonic instrument designed to detect subsurface defects caused by impact damage on solid laminate aircraft composite structures. The 35RDC features a backlit LCD that displays the word GOOD if no subsurface damage is found or the word BAD when it detects subsurface damage. It uses an ultrasonic transducer that can be placed or scanned on the area of composite material suspected of having impact damage. Weighing only 0.24 Kg (8.5 oz.) and featuring a simplified keypad, this rugged ultrasonic instrument is easy to operate and requires minimal training.
Evident offers a complete selection of transducers, cables, couplants, calibration test blocks, and accessories to meet a wide variety of ultrasonic precision thickness gauging applications.
Precision Thickness Gage Transducers
General > Environmental IP65 compliant |
Splash-proof, impact-resistant case. Sealed, color-coded keypad |
|---|---|
General > Operating Temperature Range |
-10° C to +50° C (+14° F to 122° F) |
General > Size: (W x L x H) |
84 mm x 152 mm x 84 mm (3.31 in. x 6.0 in. x 1.50 in.) |
General > Weight |
0.24 kg (8.5 oz) |
General > Standard Inclusions |
Wrist strap, 3 AA batteries, 5 MHz transducer, transducer cable, couplant, carrying case, rubber protective boot with neck strap, instruction manual, two-year limited warranty |
General > Display Modes |
|
General > Thickness Measurement Range** |
0.63 mm to 22.8 mm (0.025 in. to 0.900 in.) |
General > Material Velocity |
Fixed velocity for carbon fiber aerospace composite |
General > Transducer Frequency |
5.0 MHz |
General > Measurement Update Rate |
20 Hz |
General > Deviation alarm set points |
Programmable +/- from calibration point. Set in advance setup |
Power Supply > Battery |
3 AA alkaline or NiMH batteries |
Power Supply > Operating Time |
150 hours typical battery life; 30 hours continuous with backlight on |
Power Supply > Low Battery Indicator |
Continuously indicates battery status |
Power Supply > Battery Saver |
Auto Power Off/Continuous On |
Power Supply > AC Power Supply |
Optional |
USB/ADP-115: AC-115 power supply
USB/ADP-230: AC-230 power supply
*All specifications are subject to change without notice.
