Vanta Element手持式XRF分析仪系列提供两种高性价比型号，具有检测迅速、坚固耐用和连网便捷的优势特性。Vanta Element分析仪提供经济实惠的合金辨别功能，而Vanta Element-S分析仪则添加了经济实惠的轻元素检测功能。两种型号都易于操作，具有现代直观的界面，适合于各种技能水平的用户。在废料回收和金属制造应用中，可在几秒钟内进行材料和牌号识别，并轻松比较合金。
Vanta Element手持式XRF分析仪系列提供两种高性价比型号，具有检测迅速、坚固耐用和连网便捷的优势特性。Vanta Element分析仪提供经济实惠的合金辨别功能，而Vanta Element-S分析仪则添加了经济实惠的轻元素检测功能。两种型号都易于操作，具有现代直观的界面，适合于各种技能水平的用户。在废料回收和金属制造应用中，可在几秒钟内进行材料和牌号识别，并轻松比较合金。

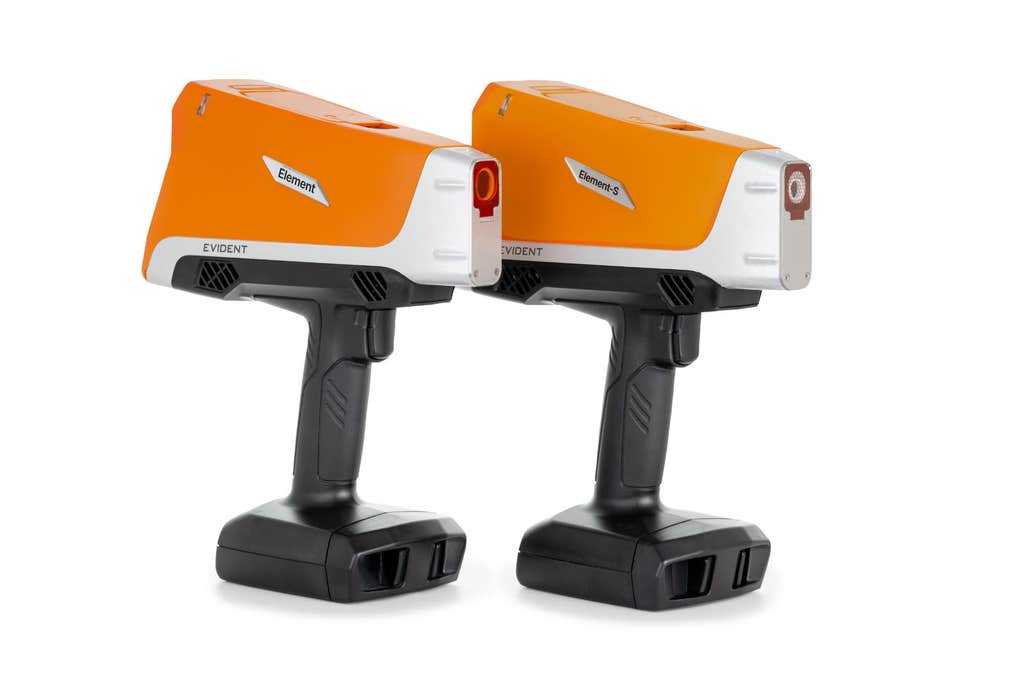

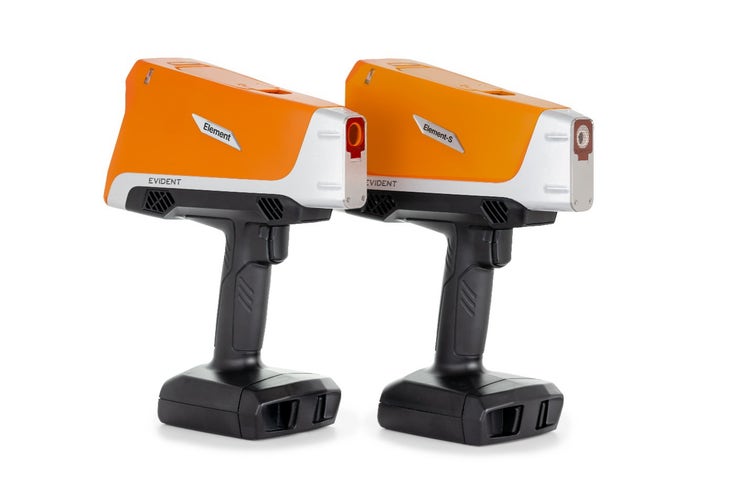

Get alloy chemistry and grade ID in seconds with affordable XRF testing. The Vanta Element handheld XRF analyzer series provides elemental analysis for fast alloy identification and sorting in two cost-effective models:

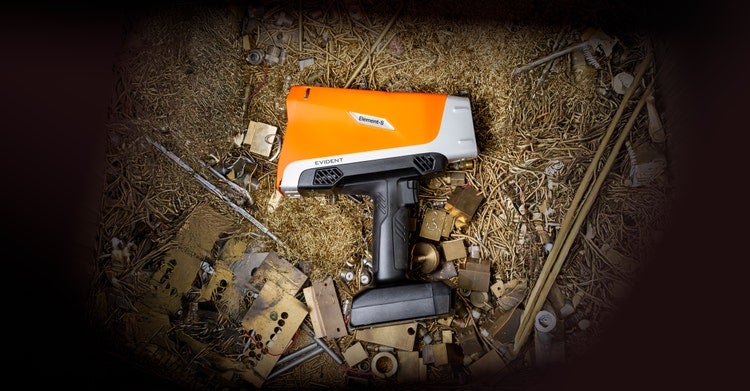

Both models feature fast grade ID and clear on-screen grade comparison, giving you the confidence to speed up metal testing for scrap sorting, metal manufacturing, and precious metals analysis. Easy to use and easy to learn, the smartphone-like interface streamlines user training and the sorting process.
Our next-generation Vanta Element models are cost-effective and engineered for efficiency, with analysis that is up to two times faster than previous models. Get maximum value with no compromise on performance.
| Model | Vanta Element Model | Vanta Element-S Model |
| Use | Affordable alloy ID | Affordable light element detection |
| Best for | Basic analyses | Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P) |
| Detector | Silicon drift detector | Faster silicon drift detector |
| Window | Thick Kapton window | Prolene window with Kapton mesh support |
| Excitation source | 2-watt X-ray tube with 35 kV tungsten (W) anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Element addition avaliable | Yes | Yes |
The Vanta Element series brings exceptional accuracy and speed to the alloy and metal analysis that sorters, manufacturers, and inspectors rely on in their work.
With convenient file access, integrated data management, and modern connectivity features, the Vanta Element series saves you time from results to reporting.
Built for greater uptime in demanding environments, the Vanta Element series delivers a low cost of ownership. Long-lasting confidence is built into every Vanta Element model.

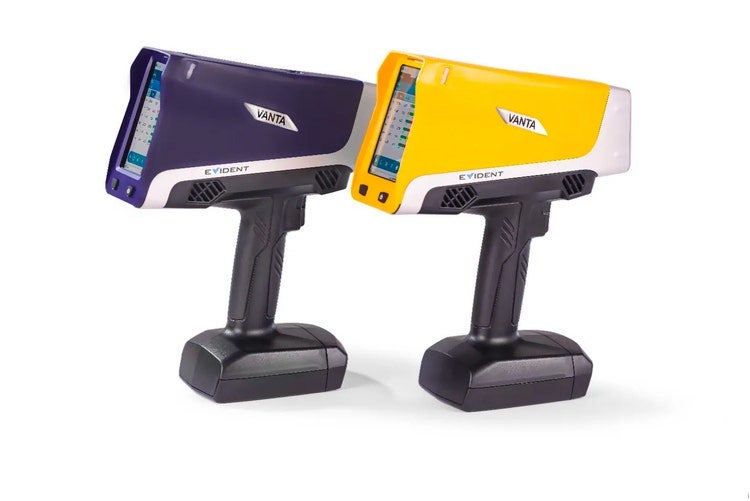

The Vanta Max model offers the series’ highest analytical capabilities for robust applications, including mineral exploration, academic research, soil testing, and environmental analysis. The Vanta Core model combines value with speed, low limits of detection (LODs), and a wide elemental range, making it the standard choice for fast alloy identification.
| Vanta Element Model | Vanta Element-S Model | |
| Dimensions (W x H x D) | 10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.) | |
| Weight | 1.71 kg (3.77 lb) with battery, 1.48 kg (3.26 lb) without battery | 1.84 kg (4 lb) with battery, 1.61 kg (3.55 lb) without battery |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | 4-position filter wheel |
| Detector | Entry-level silicon drift detector (SDD) with a high-sensitivity graphene window | SDD with a high-sensitivity graphene window |
| Barometer | No | Yes |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle Humidity: 10% to 90% relative humidity noncondensing |
|
| Drop Test | Military Standard 810-G 4-foot (1.2 m) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System |
Linux Cloud enabled with user fleet manager capability |
|
| Data Storage | microSD slot with removable 1 GB Industrial SD card included | |
| USB |
Two USB 2.0 type A host ports for accessories such as Wi-Fi, Bluetooth, and USB flash drives. One USB 2.0 type mini-B port for connection to computer. |
|
| Wi-Fi® | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth® | Supports Bluetooth with an optional USB adapter | |
| Warranty | Three-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
*High-temperature performance may vary due to electrical component availability.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Evident Corporation is under license.

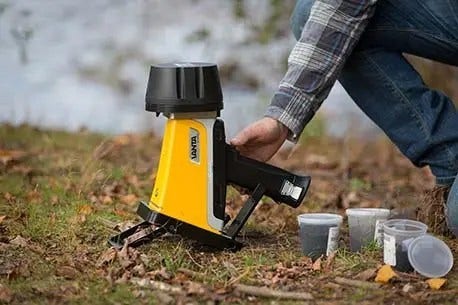

The Vanta Soil Foot provides a stable three-point support for the Vanta analyzer. This accessory facilitates hands-free analysis, making it convenient when longer test times are required.
When testing small items, such as samples in cups or bags, the Vanta Field Stand offers a lightweight, mobile test stand and shielded sample chamber. The Field Stand is easy to pack and convenient to use when you are away from your office.

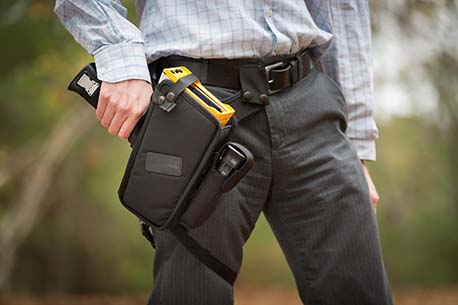

Keep your Vanta analyzer safe and secure and within easy reach with the Vanta Holster. The Holster has a strap with a fastener to secure the instrument, MOLLE/PALS webbing for additional attachment options, and brass shielding.

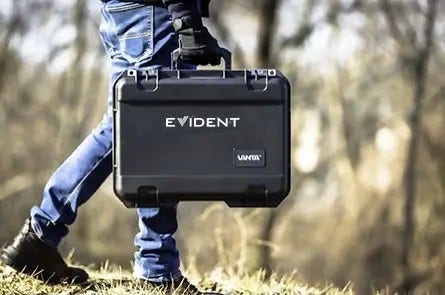

Rugged, hard-shell case to securely transport your Vanta handheld XRF analyzer.
